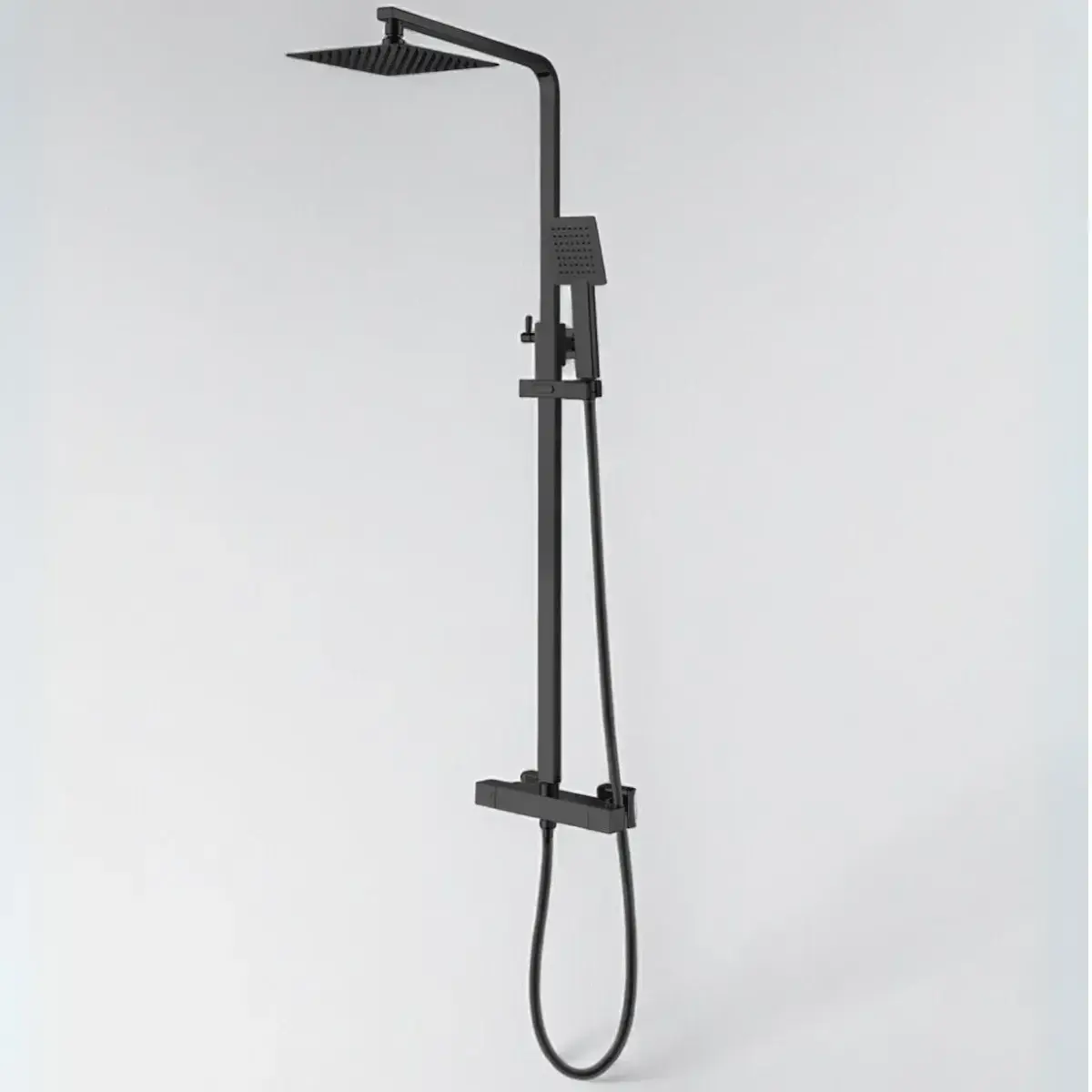

Square Dual Head Thermostatic Bar Mixer Shower Matt Black
Product Overview:

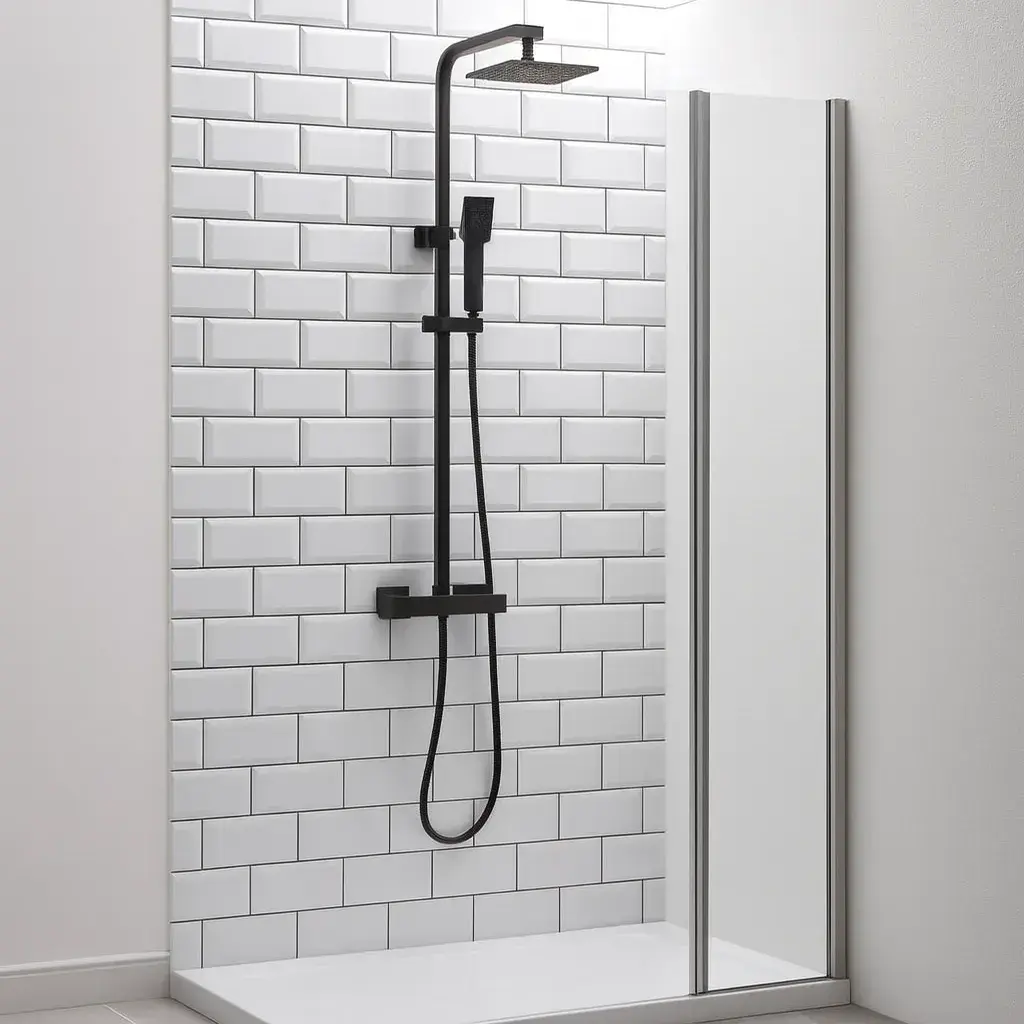

Bring a bold, contemporary finish to your bathroom with this square dual head thermostatic shower in matt black.
The shower combines a large 200mm fixed overhead shower with a separate single-function handset, giving you the flexibility to choose between an immersive rainfall-style shower and more focused rinsing. An adjustable rigid riser allows the overhead shower position to be adapted to suit your installation.
Separate flow and temperature controls make the shower straightforward to operate. The thermostatic cartridge maintains a stable outlet temperature, while the 38°C safety stop helps prevent hotter temperatures from being selected accidentally.
Key Features:
- Contemporary square shower design
- Modern matt black finish
- Thermostatic temperature control
- Separate flow and temperature controls
- Built-in outlet diverter

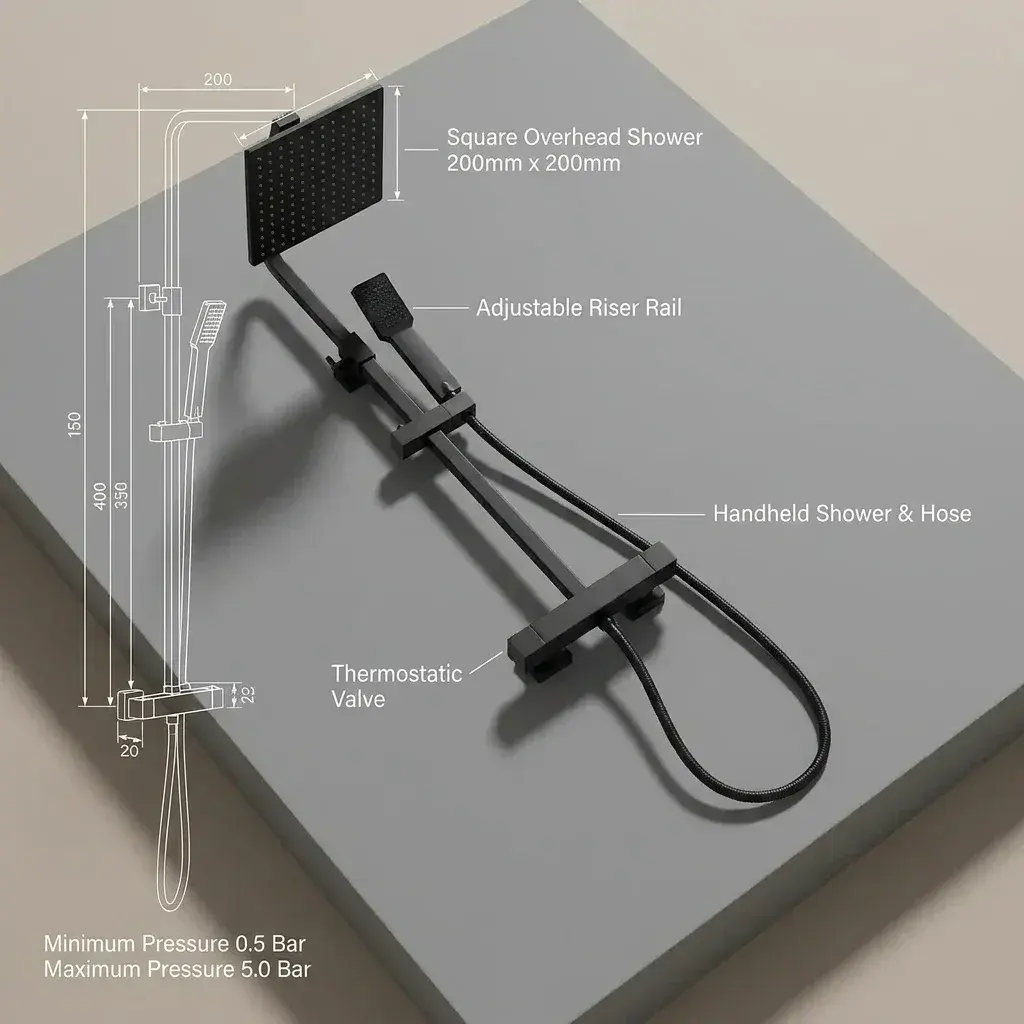

- Large 200mm square overhead shower
- Single-function hand shower
- Adjustable rigid riser rail
- 1.5m flexible shower hose
- 38°C temperature safety stop
- Temperature stability within approximately ±2°C
- Automatic shut-off if the cold-water supply fails
- Durable brass shower body
- Standard 150mm inlet centres
- 3-year manufacturers guarantee
What Is Included?
- Exposed thermostatic bar mixer valve
- Adjustable rigid riser rail
- 200mm square fixed shower head
- Single-function hand shower
- 1.5m flexible shower hose
- Built-in diverter
- Wall-mounting components
Technical Information:
- Product type: Dual head thermostatic bar mixer shower
- Installation: Exposed and wall mounted
- Style: Contemporary
- Shape: Square
- Colour: Matt black
- Finish: Matt

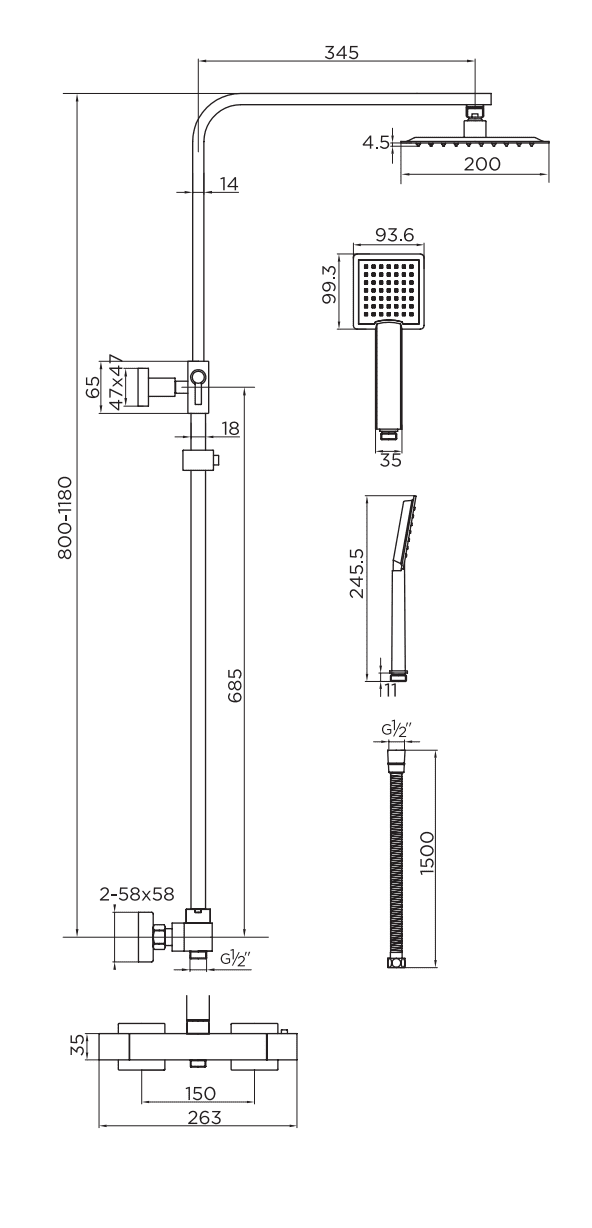

- Adjustable height: 8001180mm
- Width: 263mm
- Projection: 445mm
- Fixed shower head: 200mm square
- Hand shower functions: Single function
- Hose length: 1.5m
- Inlet centres: 150mm
- Inlet connections: ¾-inch BSP
- Outlet connections: ½-inch BSP
- Valve body material: Brass
- Riser material: Stainless steel
- Fixed head material: Stainless steel
- Handset material: ABS
- Handle material: ABS
- Thermostatic cartridge: Yes
- Safety temperature stop: 38°C
- Cold-water failure shut-off: Yes
- Gross weight: 4.9kg
- Manufacturers part number: 9302BL
- Bathcenter product code: 9302BLBC
- Guarantee: 3 years
Please Note:
- The shower allows you to divert the water between the fixed overhead shower and handset.
- Simultaneous use of both outlets is not stated and should not be advertised unless confirmed by the manufacturer.
- Water pressure and performance will depend on the propertys plumbing system.
- Check compatibility with your water system before ordering.
- Professional installation is recommended.
Frequently Asked Questions:
Is this a thermostatic shower?
Yes. Its thermostatic cartridge regulates the mixed water temperature to provide a safer and more comfortable shower.
What does the 38°C safety stop do?
It helps prevent hotter temperatures from being selected accidentally. The control must be deliberately overridden if a higher temperature is required.
What happens if the cold-water supply fails?
The valve incorporates an automatic safety shut-off designed to stop the mixed water flow if the cold-water supply is interrupted, helping to reduce the risk of scalding.
What is included with the shower?
The set includes the thermostatic bar valve, adjustable rigid riser, 200mm square fixed shower head, single-function handset, 1.5m hose and installation components.
Can the shower height be adjusted?
Yes. The riser height can be adjusted between approximately 800mm and 1180mm to suit the available installation space.
Can I use both shower heads together?
The specification confirms that the shower has a built-in diverter, allowing you to select the overhead shower or handset. It does not confirm simultaneous operation.
How large is the overhead shower?
The fixed square shower head measures 200mm.
Does the handset have different spray patterns?
No. The handset has one spray function.
Will it work with any water system?
This should not be stated without qualification. Suitability depends on the water systems available pressure and flow rate, so these should be checked before installation.
Is it suitable for use over a bath?
Yes, provided there is sufficient installation space and the bath is fitted with a suitable shower screen.
How far does the shower project from the wall?
The maximum stated projection is approximately 445mm.
Does it include a guarantee?
Yes. It includes a 3-year manufacturers guarantee.
